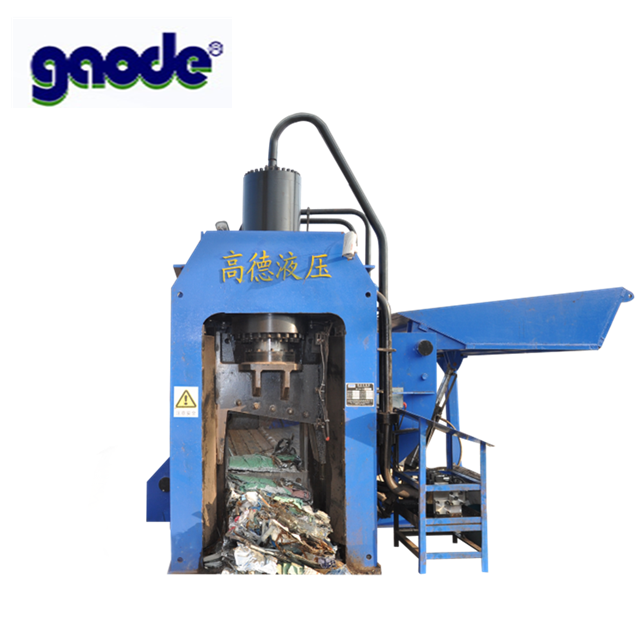

The hydraulic baler & shear machinery is suitable for the cutting of scrap materials. Metal pieces are pressed 2- or 3-dimensionally by using the pressing lid, wing and feeding pusher, and cut or broken into pieces.
The machine is able to :
1. Pre-compress and cut scrap 2.Cut bars and profiles 3. Package light scrap 4. Squeeze and cut car bodies
No.
Technical Specification
Remark
1
Cutting Cylinder
Model
YG400/280-650
stroke
650mm
Max. Force
4000KN
Quantity
1piece
2
Press Cylinder
Model
YG220/160-600
Stroke
600mm
Max. Force
1050KN
Quantity
1piece
3
Side Press Cylinder
(Grade one)
Model
YG200/140-480
Stroke
480mm
Max. Coving Force
800KN*2
Quantity
2 pieces
4
Side Press Cylinder
(Grade two)
Model
YG200/140-480
Stroke
480mm
Max. Pushing Force
800KN*2
Quantity
2pieces
5
Material Pushing Cylinder
Model
YG200/140-4800
Stroke
4800mm
Max. Pushing Force
800KN
Quantity
1 piece
6
Press Box Size(L*W*H)
5000*1600*900mm
7
Bale Size(L*W*H)
700*500mm
8
Hydraulic System Pressure
25 MPa
9
Total Motor
110KW
10
Power
380V/3PH,50Hz
11
Blade Length
800mm
12
Shearing Frequency (times/min)
3-5 time/min
13
Capacity(Ton/Hour)
4-12
14
Max Cutting Force
(material Tensile Strength no more than 440MPa)
Round TeelΦ120mm
Billet 110*110mm
Steel Plate 50*600mm
15
Motor
Model
Y200L2-6
Nominal Power
55KW
Nominal Speed
970rmp
Quantity
2 pieces
16
Hydraulic Pump
Model
250YCY14-1B
Nominal Pressure
31.5MPa
Nominal Outflow
250ml/r
Quantity
2 Pieces
17
Equipment Outline Dimension
11300*2800*3500(Flank Expansion)
L*W*H
11300*2200*3500mm(Flank Collapsed)
L*W*H
18
Floor Space
14000*4000mm
L*W
19
Control System
PLC Automatic Control
20
Cooling System
Oil - steam heat exchanger
