90KW Automatic Hydraulic Shear Cutter Heavy Shearing Scrap Metal Machine

Jiangsu Gaode Hydraulic Machinery Co., Ltd.
Contact Now

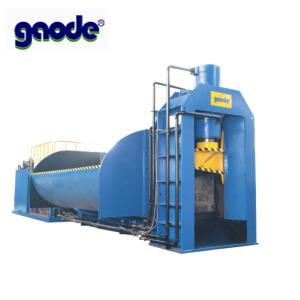

90KW Automatic Hydraulic Shear Cutter Heavy Shearing Scrap Metal Machine

Place of Origin : Jiangsu, China

Brand Name : Gaode

Model Number : HBS-5000

Certification : ISO9001:2008

Packaging Details : In nude for HBS-5000 Heavy Duty Hydraulic Scrap Metal Baling Shearing Machine

Supply Ability : 100 Set/Sets per Year

Price : $129,000.00 - $130,000.00/sets

Condition : New, New

Voltage : 380V

Rated Power : 90KW

Dimension(L*W*H) : None

Warranty : 6 Months, 6Months

Weight : None

After-sales Service Provided : Engineers available to service machinery overseas

Product name : Automatic Hydraulic Heavy Shearing scrap metal machine

Colour : As request

Certificate : CE;ISO9001:2008

Automatic grade : Automatic

After sale service : Provided

Cutting speed : 3-4Times/min

Usage : Metal recycling

Blade length : 1600mm

Port : Shanghai for HBS-5000 Heavy Duty Hydraulic Scrap Metal Baling Shearing Machine

Contact Now

Automatic Hydraulic Heavy Shearing scrap metal machine

Application

The scrap baler and shear is suitable for cutting or baling scrap steel; scrap car and other metal structural parts, all kinds of non-ferrous metals(stainless steel, aluminum, copper, etc). Or compression packaging of these wastes directly.

Technology

No

Technical specification

Remark

1

Shear cylinder

Model

YG450/340-850

1set

Nominal pressure

5000KN

Trip

850

2

Shear cylinder

Model

YG200/140-840

2set

Nominal pressure

1000KN×2

Trip

840M

3

First class cylinder

Model

YG200/140-700

3set

Nominal pressure

1000 KNx3

Trip

700MM

4

Second class cylinder

Model

YG200/140-680

3set

Nominal pressure

1000KN*3

Trip

680MM

5

Feed cylinder

Model

YG200/140-5510

1set

Nominal pressure

1000KN

Trip

5010MM

6

Press box size(L×W×H)(MM)

5000*2000*1300

7

Bale size(L×W×H)(MM)

5000*750*550

8

Working pressure system

25Mpa/20Mpa

9

Shear length/min shear open

850MM/580MM

10

Press material length/max press open

800MM/650MM

11

Motor

135KW

12

Electric

380V/3HP 50HZ

13

Shear degree

10

14.

Shear time

3time/min

9

Motor

Model

Y3 225M-4

Power

45KW

Speed

1480R/MIN

Quantity

3set

10

Oil pump

Model

OSA7V

pressure

40Mpa

Oil flow

160ml/r

Quantity

3set

11

Cooling system

Model

Separate cycle system

Company Information

Gaode Hydraulic Machinery has been a trusted name in the waste recycling equipment industry for over a decade as a dedicated Chinese manufacturer of scrap metal recycling equipment, our flagship products includethe shear baler, scrap baler, scrap shear, and recycling crane.

In addition to scrap metal processing equipment, we also supply horizontal baler and vertical baler for compacting plastic, paper, cardboard, straw, textile and more types of wastes. Our company was first inaugurated in 2003.

Our Gaode brand has received critical acclaim both domestically and overseas. As a trusted waste recycling equipment manufacturer, we have successfully passed the certification of the ISO9001 Quality Management System. We are currently in the process of obtaining the approval of European standards such as CE and UL.

Finished Products

90KW Automatic Hydraulic Shear Cutter Heavy Shearing Scrap Metal Machine

The Exhibition

90KW Automatic Hydraulic Shear Cutter Heavy Shearing Scrap Metal Machine

Our Certificate

90KW Automatic Hydraulic Shear Cutter Heavy Shearing Scrap Metal Machine

Our Factory

90KW Automatic Hydraulic Shear Cutter Heavy Shearing Scrap Metal Machine

Our Services

6months guarantee for whole machine.

24hours technical support by email.

Calling or door to door service.

User manual and detailed video.

Contact Information

Nancy

Jiangsu Gaode Hydraulic Machinery Co,Ltd.

TEL: 86-510-86996082 / 15261620670

FAX: 86-510-86993993

ADD: NO.691, Chengshan Road, Jiangyin City, Jiangsu Province, China.

FAQ

1, Q:Can I add my logo on the machines?

A: Yes,OEM and ODM are available for us.

But you should send us the Trademark authorization letter.

2, Q:How can i get the after-service?

A: We will send you the spare parts by free if the problems caused by us.

If it is the men-made problems,we also send the spare parts,but you should pay.

3, Q:Do you have inspection procedures for machines?

A:100% self-inspection before packing

4, Q:Can I have a visit to your factory before the order?

A:Sure,welcome to visit our factory.
Here is our factory address:No.691, Chengshan Road, Jiangyin City, Jiangsu Province, China.

5, Q: Can we order one set machine?

A:Yes, you can.
